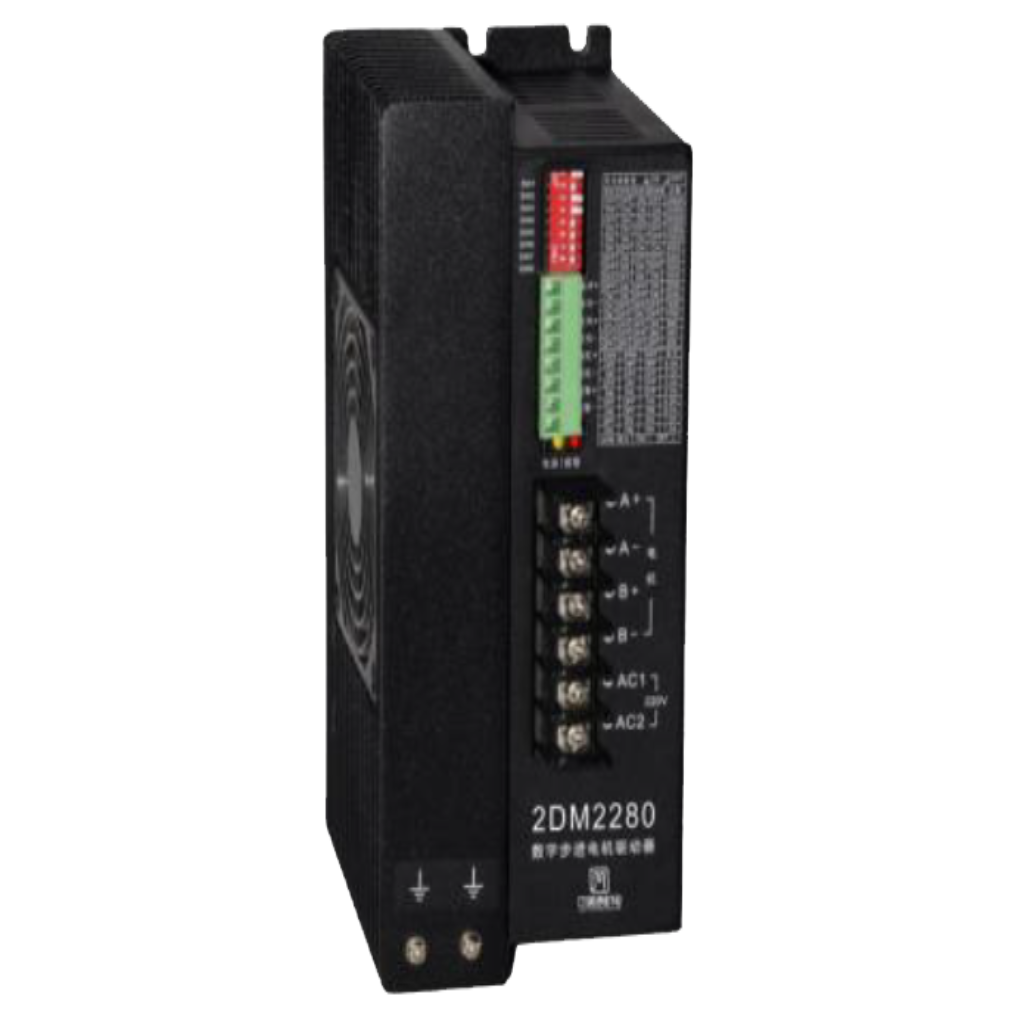

JMC-2DM2280

The 2DM2280 is a two phase digital stepper driver based on DSP. Its Micro step resolutions and output current are programmable. And it has advanced control algorithm, which can brings a unique level of system smoothness, provides optimum torque and mid-range instability. The control algorithm of Multi-Stepping can make stepper motor has smooth system performance.

• Parameter auto-setup and motor self-test
• Multi-Stepping inside
• Small noise, low heating, smooth movement
• Torque compensation in high speed
• Variable current control technology, High current efficiency
• Accelerate and decelerate control inside, Great improvement in smoothness of starting or stopping the motor
• Support PUL/DIR and CW/CCW modes
• Storage the position of motor
• Optically isolated input and compatible with 5V or 24V
• User-defined micro steps
• Microstep resolutions and Output current programmable
• Over current, over voltage and low voltage protection
• Green light means running while red light means protection or off line
